Changzhou Jintan Lishen Macinery Co., Ltd

Automatic Compression Machine /Trichloroisocyanuric Acid Tablet Press Machine / Chlorine Tables For Swimming Pool Tablet

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS200T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Application: TCCA Tablet Press Product Name: Automatic Compression Machine
Product Mold: Multi-cavity Mould Type: Granulator,Single Punch,Press Machine
Usage: Tablet Press And Making Quality Control: Test Before Delivery
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training

Product Description

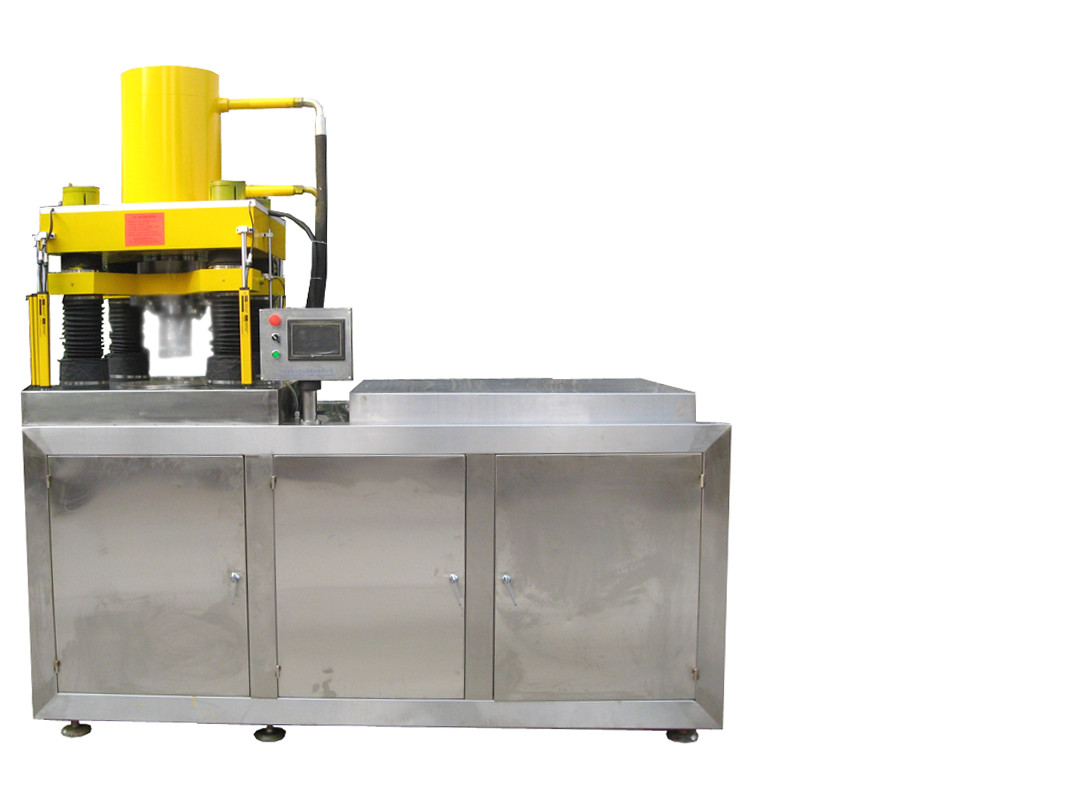

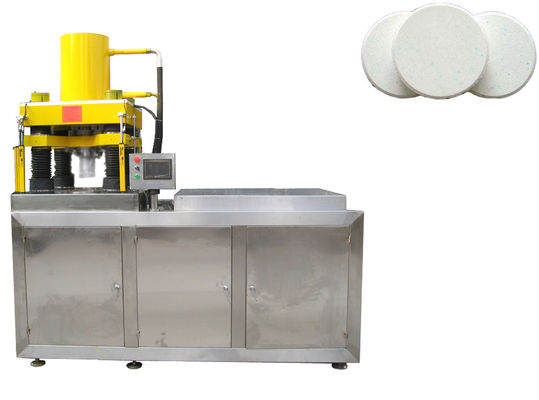

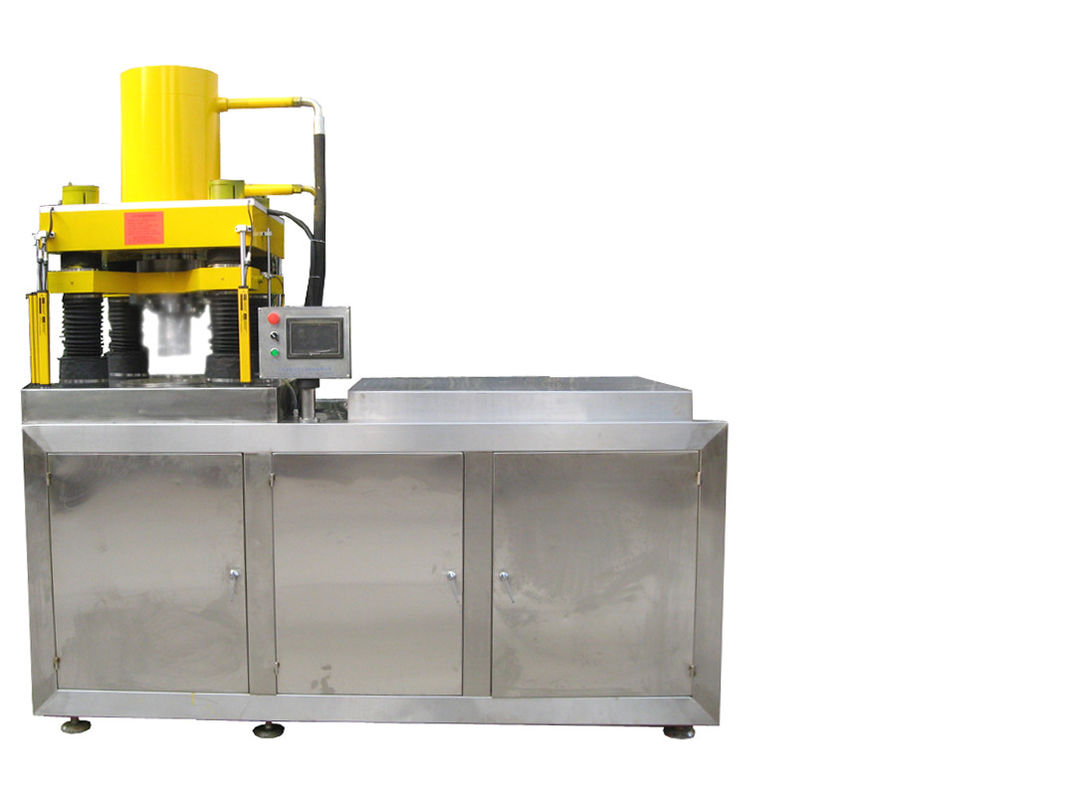

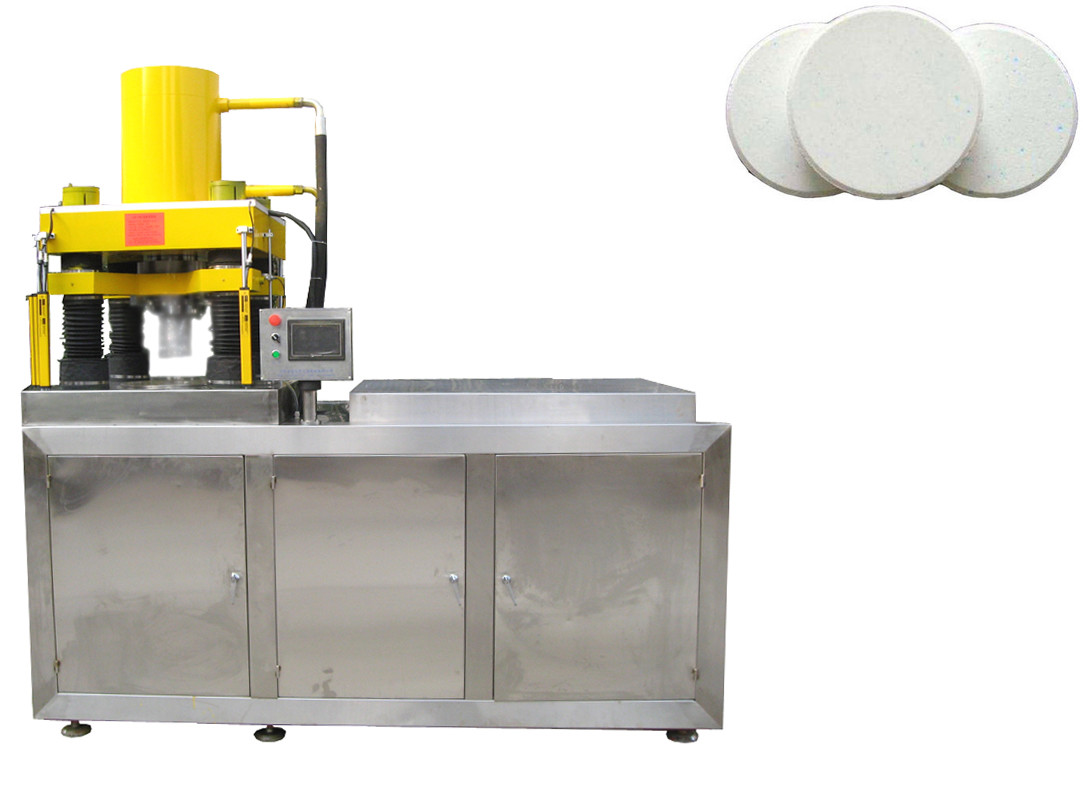

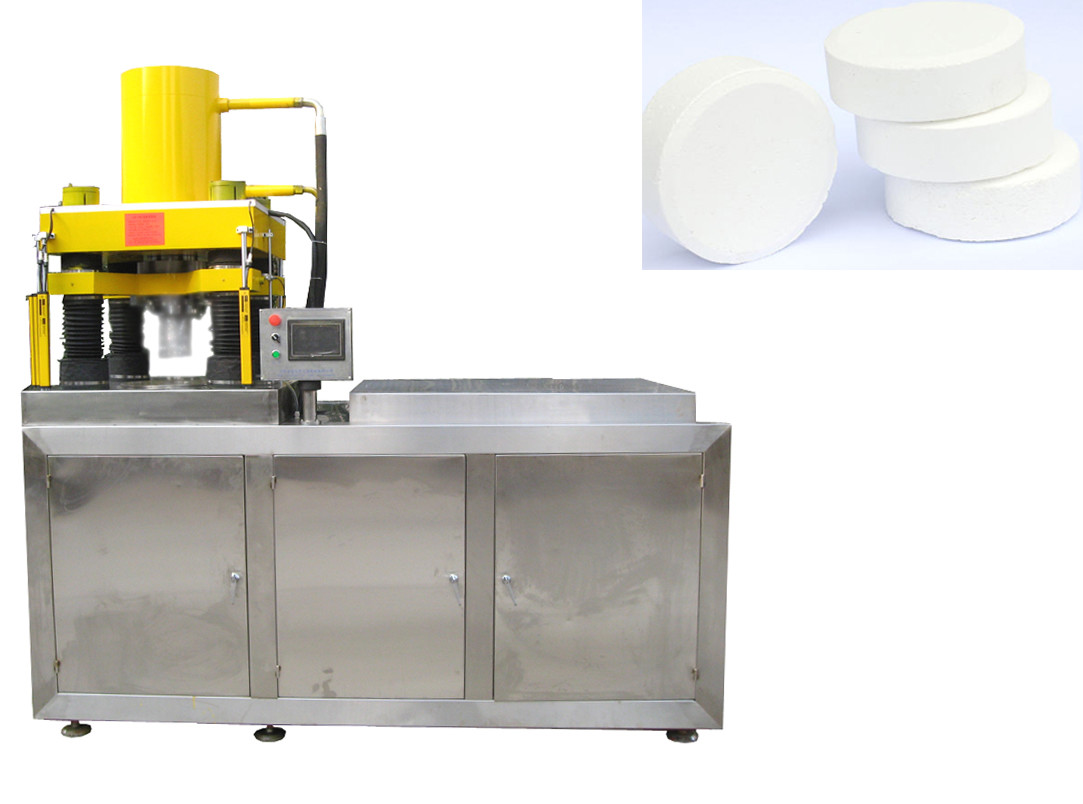

Automatic Compression Machine /Trichloroisocyanuric Acid Tablet Press Machine / Chlorine Tables For Swimming Pool Tablet



Technical Parameters:

Production Capacity 1440-1800 pcs / hour
Working Pressure ≤200T
Working Stroke Up stroke≤250mm, down strokes≤150mm
Max.Filling Depth 150mm
Product Mold 1. Titanium alloy material
Product Mold 2. One mold with 6 dies
Max. Tablet Size 70mm
Max. Tablet Thickness 20mm
Motor Power 18.5kw / 22kw(Servo) 380/V 50/Hz
Machine Size Approximately 2500mm*1200mm*2800mm(L*W*H)
Machine Weight Approximately 4800kg



Features of Automatic Tablet Press Machine:

1.The machine can press the powder material into tablet.

2. It could be used in pharmaceutical factory,chemical factory, hospital, R&D institution, laboratory.

3. This machine is with good performance, strong suitability, simple operation, easily repairs, small cubage and light.

4. Under the conditions or power cut, hand swing available.

5. The depth of filling and the thickness of tablets is adjustable.

6. Mold dies can be customized.



Using Guides
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.

Automatic Compression Machine /Trichloroisocyanuric Acid Tablet Press Machine / Chlorine Tables For Swimming Pool Tablet 0

Automatic Compression Machine /Trichloroisocyanuric Acid Tablet Press Machine / Chlorine Tables For Swimming Pool Tablet 1

Quality Assurance
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.


Tablet Press Machine Applications:

Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials..



Advanges:
(1). Excellent performance, strong adaptability, convenient operation.
(2). Machine has big pressure, could press big tablet, for small capacity.
(3). Material filling and depth adjusted.
(4). Machine could be operated by electricity and hands.
(5). Machine could press different tablet size and tablet shape by changing mould.



Automatic tablet press machine is continuous automatic, it is the pharmaceutical, chemical, food processing, electronics and other industrial department granular materials into one of the necessary equipment, it is suitable for small batch production, laboratory, hospital departments such as pressing tablets, catalyst, sugar tablets, calcium tablets, coffee, powder metallurgy, electronic components and various agricultural fertilizer agent, etc.It can suppress all kinds of special-shaped, ring tablet, and can suppress double-sided engraved with trademarks, text and simple graphics tablets, because of the pressure, strength, particularly suited to suppress difficult molding powder tablets, such as ceramic powder, metal powder, etc.New type tablet press gives you better quality and price, automatic tablet press for pressing granular raw materials into

This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
