Animal Feed Block Making Machine With PLC Mineral Salt Lick Block Making Machine Hydraulic Press Machinery

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS250T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Type: Hydraulic Tablet Press Product Mold: Multi-cavity Mould
Working Pressure: ≤250T Product Name: Salt Block Press Machine
Filling Depth: ≤100mm Application: Tablet Press
Apply To Shape: Round,square,or Special-shaped Standard: BV

Product Description

Animal Feed Block Making Machine With PLC Mineral Salt Lick Block Making Machine Hydraulic Press Machinery





Hydraulic Salt Block Press Machine
We produce low-power, high pressure hydraulic automatic cattle&sheep licking salt block press machine with high pressure and high accuracy. This press machine uses advanced mechanical, electrical,hydraulic and pneumatic control,with automatic feeding device,floating pressure,so that the density of the molded products has been effectively controlled,hydraulic systerm uses advanced cartidge valve blockes,hydraulic machine to ensure continuous and frequent stability working; Mechanical stopper positioning and stepless adjustment mechanism of loading, molding, demolding three-position to determine the stability, adjustable of the product's geometry size.With oil fluid cooling device. PLC and man-machine interface centralized control, while equipped with a mechanical limit device to ensure product consistency.
In china,our machine's production efficiency is far ahead on the same field.
Features for Salt Block Press Machine:
1.Adopt the most advanced professional cartridge valve blocks, large flow path, save system pressure loss. Good seal performance.
under long-term heavy load work condition the system also won't appear insufficient phenomenon; equipped with Preliminary unloading device, eliminate the hydraulic impact.
2.Use two-way floating pressure adding system, ensure the uniform density of blocks, make sure the high density of blocks; The block hole part adopt core pulling cylinder, make the hole edge smoothly and good looking.
3.Hydraulic cylinder are made of thick-wall seamless high strength alloy . In wall was honing by raw sandpaper and fine sandpaper by honing machine, ensure the cylinder in wall reach mirror surface, then make sure the good using performance.
4.Adopt PLC automatic control system, strong anti-interference ability and low failure rate.Miniature relay adopt Japanese omron electric equipment, ensure the safety of control system.
5.Adopt professional mould frame, use Six guide pin to ensure accurate positioning, and equip mechanical position limitation.
only ensure the perfect outlook of pressed material also ensure the high quality.
6.Adopt advanced fast device, small calorific value, high productivity, durable and energy saving ( around 3.5 times per minutes)

Some Detailed Parts for Salt Block Press Machine:

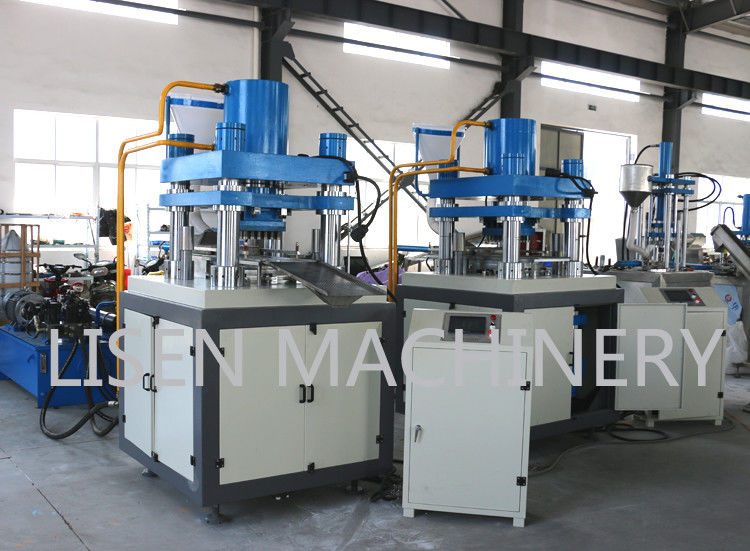

Animal Feed Block Making Machine With PLC Mineral Salt Lick Block Making Machine Hydraulic Press Machinery 0

Technical Parameters for Salt Block Press Machine:

Production Capacity 3-5molds/min(the actual speed according to product process requirement)
Working Pressure ≤250T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 18. 5kw 22kw(Servo)
Weight&Size Approximately:5200kg 3200mm*1200mm*2100mm(L*W*H)

Quality Assurance for for Salt Block Press Machine:

· We support SAMPLE making and testing with your raw material.

· Every set of machine would be strictly inspected before shipment to ensure the quality.

· TEST RUNNING with material could be supported according to your inquiry.

· There would be quality certificate along with machine.

· Easily Wear and tear parts would be shipped with machine.

· Real-time checking on line for machine manufacturing would be supplied if you like.

· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.

Animal Feed Block Making Machine With PLC Mineral Salt Lick Block Making Machine Hydraulic Press Machinery 1

Applications for Salt Block Press Machine:

  1. Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
  2. Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
  3. Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
  4. Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...

Animal Feed Block Making Machine With PLC Mineral Salt Lick Block Making Machine Hydraulic Press Machinery 2

Packing and Delivery for Salt Block Press Machine:

Animal Feed Block Making Machine With PLC Mineral Salt Lick Block Making Machine Hydraulic Press Machinery 3
