Product Details:
|
|
Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Lisen |
Certification: | BV |
Model Number: | LS500T |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 35-65 working days |
Payment Terms: | TT, LC |
Supply Ability: | 20000/Year |
Detail Information |
|||
Working Pressure: | ≤500T | Product Mold: | Multi-cavity Mould |
---|---|---|---|
Application: | Tablet Press | Filling Depth: | ≤400mm |
Product Name: | Ceramic Press Machine | Apply To Shape: | Round,square,or Special-shaped |
Standard: | BV | Type: | Hydraulic Tablet Press |
High Light: | hydraulic tile press machine,cement tile press machine |
Product Description

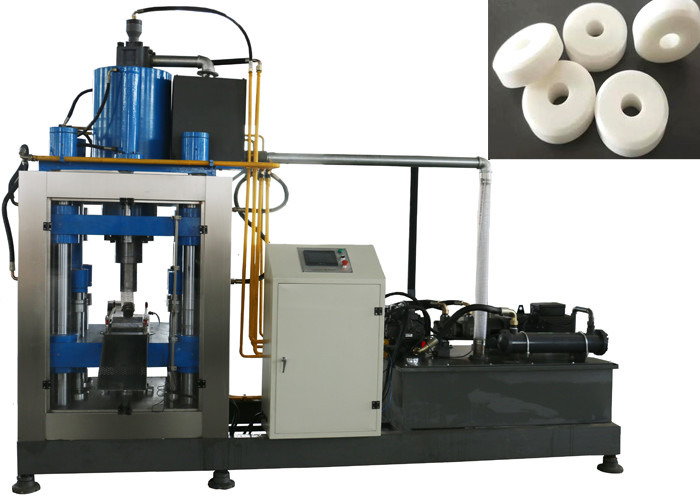

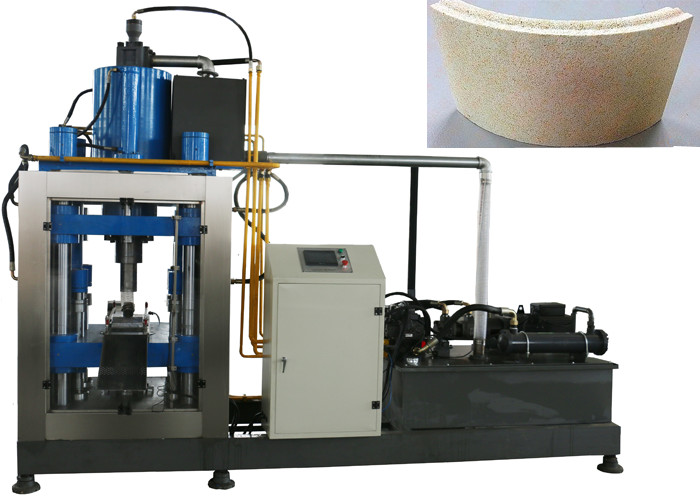

Ceramic Press Machine for Ceramic Part Alumina Zirconia Mulite Ceramic Part Ceramic Component
Details of Ceramic Press Machine:
1. Structure: | it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The Salt table making hydraulic press machine column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing. |
2. Hydraulic System: | The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components. |
3. Electrical Control System: | an independent electric cabinet and a centralized control panel. |
4. Operation: | Two working modes as inches and semi-automatic strokes. |
5. Security: | The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder. |
More Information of Ceramic Press Machine:
The tablet press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.
Technology and Advantage of Ceramic Press Machine:
* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.
* Different layer different color: Can compress the tablet with different layers and different colors.
* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.
* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
Features of Ceramic Press Machine:
Technical Parameters of Ceramic Press Machine::
Production Capacity | 2-4molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤500T(1. step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Up stroke≤600mm,down strokes≤400mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Filling Depth | ≤400mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 30kw 45kw(Servo) |
Weight&Size | Approximately: 12000kg 3200mm*1200mm*2800mm(L*W*H) |
Customers' Feedback of Ceramic Press Machine:
Services of Ceramic Press Machine:
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours, except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
