|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Product Name:||Firebrick Ceramic Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
hydraulic tile press machine,
cement tile press machine

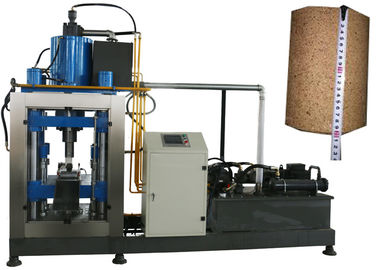

PLC Touch Screen Hydraulic Press Machine / Ceramic Press Machine For Wear Resisting Alumina Ceramic Tile
Wear-resistance alumina ceramic is based on high-purity ultra-fine α alumina powder as raw materials, after optimized design and high-temperature sintered, it has excellent characteristic of anti-wear and corrosion resistance.
What ceramic products our ceramic press machine can make?
Ceramic lining brick, high-alumina lining brick, alumina lining brick, 92 porcelain lining, ball mill inner lining, high-alumina inner lining.
Features of Ceramic Press Machine:
Technical Parameters of Ceramic Press Machine:
|Production Capacity||2-4molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤500T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤600mm,down strokes≤400mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤400mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||30kw 45kw(Servo)|
|Weight&Size||Approximately: 12000kg 3200mm*1200mm*2800mm(L*W*H)|
Detail Information of Ceramic Press Machine:
The tablet press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.
Technology and Advantage of Ceramic Press Machine:
* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.
* Different layer different color: Can compress the tablet with different layers and different colors.
* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.
* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours, except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
