Product Details:
|
|
Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Lisen |
Certification: | BV |
Model Number: | LS10T |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 35-65 working days |
Payment Terms: | TT, LC |
Supply Ability: | 20000/Year |
Detail Information |
|||
Working Pressure: | ≤10T | Filling Depth: | ≤100mm |
---|---|---|---|
Product Name: | Ceramic Press Machine | Application: | Tablet Press |
Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
Standard: | BV | Type: | Hydraulic Tablet Press |
High Light: | 100mm tablet punching machine,Ceramic pill compressor machine |
Product Description

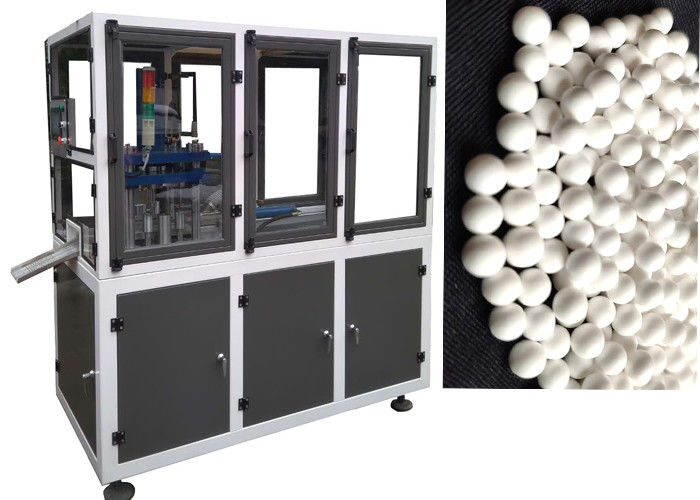

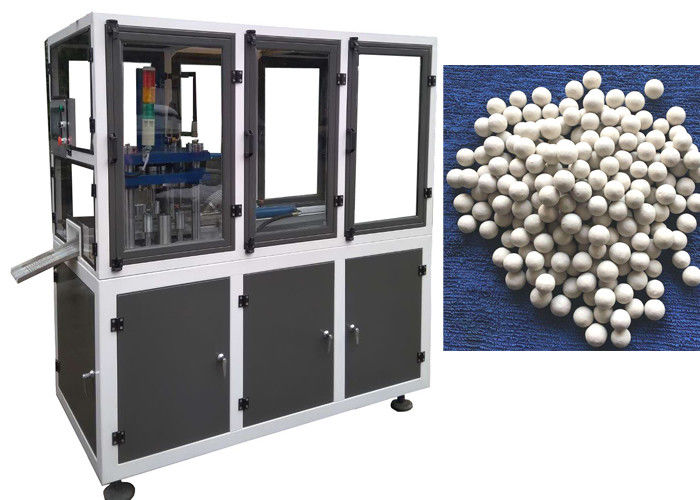

High Speed High Efficiency Powder Compression Machine / Press Machine For Ceramic Balls Of Negative Charge
Widely used in a variety of mass production of powder forming. Such as bath ball, moth ball, ceramic parts, salt block, wax and other products processing. At the same time, the installation of automatic feeder, automatic transfer in the overall production line processing.
The four/4 column hydraulic presscan beoperated with automatic one cycle design; two hand push button design for simple and safe operation. Thefour column hydraulic presscould also realize three-operation mode: adjustment, manual and semi-automatic.
PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds.
All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
Dual control you can select to use:
a) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop;
b) Movable single-hand pedal switch.
Characteristics:
Four/4 Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products has the black-white control and PLC controls two kinds of electrical control system. The theadjustment, manual and the semiautomatic three operation mode may realize the constant pressure and decide theregulation two sreft ways.
When constant pressure formation, after suppression has gurantees when the rolling and automatic return trip movement. In the worktable is loaded with goes against the installment, besides goes against the product. Still permissible uses in as fluid pressure pad instead stretching workpiece's formation craft, its working pressure and the traveling schedule, may according to the craft need, adjust in the stipulatin scope.
About us:
Jiangsu Jintan Lishen Machinery Co., ltd is a professional manufacturer and supplier of tablet press machinery and equipment in China. We are located in Jiangsu,China.Personalized and customized service will provided for you. We have designed and developed different working pressures of tablet press machinery and equipment. Our tablet press machine are of good quality and reputation, and have export to many different countries. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. In LISHEN, you can get your desired TABLET PRESS with the best prices and good quality. Warm welcome your enquiry from all over the world.
This hydraulic press machine is mainly used for press food, tea, ceramic, metallurgy, ore material, disinfectant, detergent, magnetic products, bath bomb,etc
We are a professional semi auto full auto bath bomb press machine and auto bath bomb wrap machine manufacturer,our machine mainly export to the USA.
Tablet Press Machine Applications:
Technical Parameters:
Production Capacity | 5-7molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤10T(1. step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Up stroke≤250mm,Down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Filling Depth | ≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 2. 2kw, 4kw(Servo) |
Weight&Size | Approximately:680kg, 1600mm*800mm*1800mm(L*W*H) |
Quality Assurance
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
