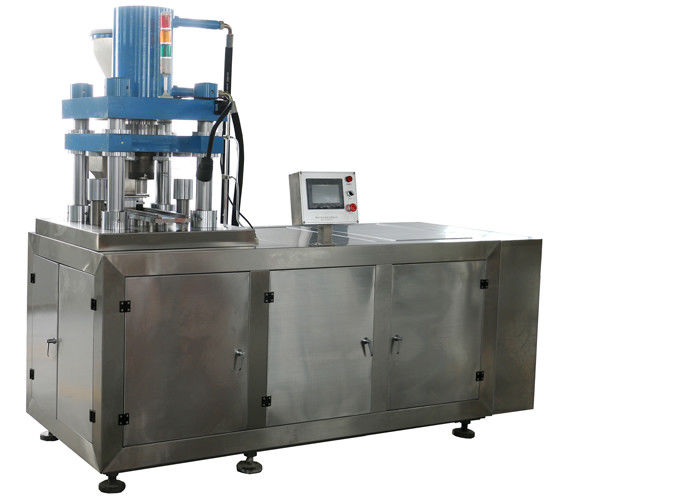

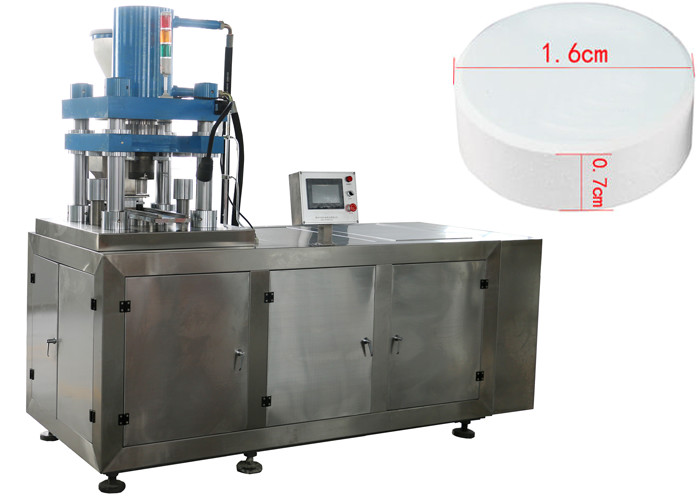

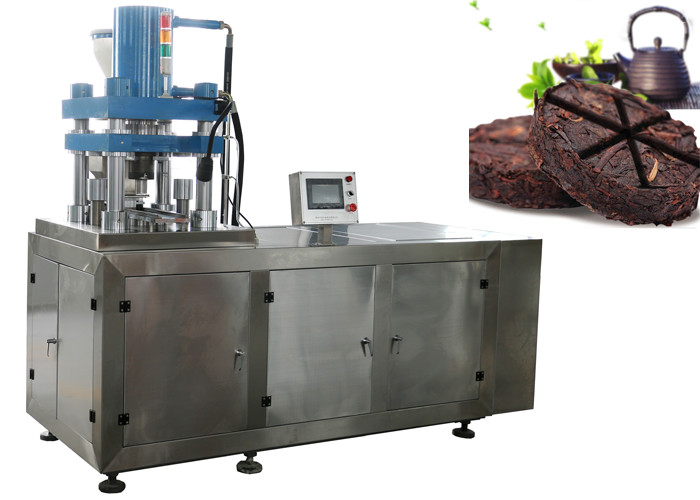

Reliable Safety Dust Proof Hydraulic Tablet Press Machine / Tablet Press For Granular Raw Materials

Product Description

Reliable Safety Dust Proof Hydraulic Tablet Press Machine / Tablet Press For Granular Raw Materials

1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the GMP requirement.

2. It has transparent windows, so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance are easier

3. The machine can press not only round tablets, but also different geometrical shape tablets, double-layered and annular tablets; the tablets may have the impressed letters on both sides

4. All the controllers and devices are located in one side of the

machine, so that it can be easier to operate

5. An overload unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs

6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.

Jiangsu Jintan Lishen Machinery Co., Ltd, is a comprehensive private technology enterprise that integrates the functions of tablet press machine research, design, develop, manufacturing and sales. We always uphold the business philosophy of "quality first, promise to service,honest management, satisfy customers' needs" and "Pursue perfection, keep improving, and constantly innovating. High-quality after-sales service and technical follow up works remove concerns of most customers.

Technical Parameters:

Tablet Press Machine Features

1. This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.

2. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.

3. The mechanical buffer unit will prevent punches and apparatus from overload damage.

4. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.

5. With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
6. With dust seal ring on punches, avoid powder leakage from turret table.
7. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
8. It is equipped with overload protection device, when pressure overload, it can stop automatically.

Using Guides

1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.

2. Do not use the wet materials in order to avoid destroying machine.

3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.

4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.

5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.

Application
