Hydraulic Power Press Machine GMP Standard Tablet Punching Machine With Precompress And PLC Touch Screen Control

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS45T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Voltage: 220V/380V Filling Depth: ≤150mm
Product Name: Water Soften Hydraulic Tablet Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

hydraulic press equipment

,

medicine tablet making machine

Product Description

Hydraulic Power Press Machine GMP Standard Tablet Punching Machine With Precompress And PLC Touch Screen Control



The machine adopts the adjustment of speed by means of frequency inversion which is easy in operation and wide in the scope of adjustment of speed. Disintegrated structure is adopted for the turret, with the top of the table directly in contact with the pharmaceutical  materials made of stainless steel and hardened by special technological process, resulting in the remarkable improvement in fatness and resistance to wearing.



Jiangsu Jintan Lishen Machinery Co., Ltd, is a comprehensive private technology enterprise that integrates the functions of tablet press machine research, design, develop, manufacturing and sales. We always uphold the business philosophy of "quality first, promise to service,honest management, satisfy customers' needs" and "Pursue perfection, keep improving, and constantly innovating. High-quality after-sales service and technical follow up works remove concerns of most customers.



Tablet Press Machine Features

1. This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.

2. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.

3. The mechanical buffer unit will prevent punches and apparatus from overload damage.

4. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.

5. With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
6. With dust seal ring on punches, avoid powder leakage from turret table.
7. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
8. It is equipped with overload protection device, when pressure overload, it can stop automatically.



Using Guides

1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.

2. Do not use the wet materials in order to avoid destroying machine.

3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.

4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.

5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.



Technical Parameters:

Production Capacity 5-7molds/min(the actual speed according to product process requirement)
Working Pressure ≤45T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤150mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 7. 5kw 9kw(Servo)
Weight&Size Approximately:2000kg 2200mm*950mm*2050mm(L*W*H)



Application

Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...

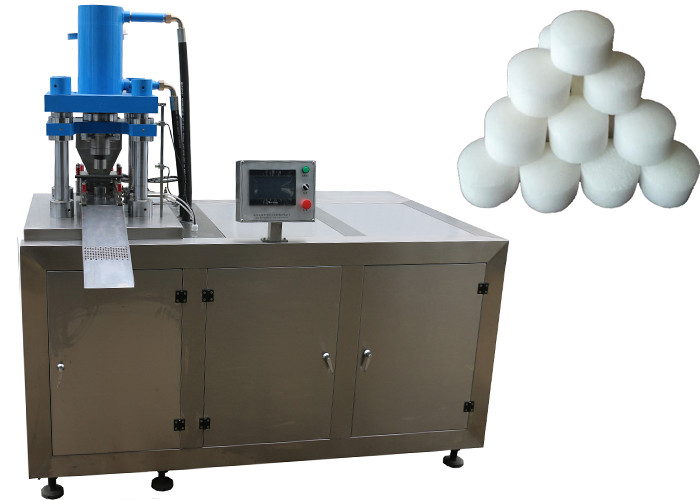

Hydraulic Power Press Machine GMP Standard Tablet Punching Machine With Precompress And PLC Touch Screen Control 0
