2kg Salt Block Hydraulic Tablet Press For Cattle Deer Camel Feeding Press Machine / Salt Block Press Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS-250T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Product Name: Salt Block Press Machine Product Mold: Multi-cavity Mould
Application: Tablet Press Working Pressure: ≤250T
Filling Depth: ≤100mm Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

industrial pill press machine

,

salt block making machine

Product Description

2kg Salt Block Hydraulic Tablet Press For Cattle Deer Camel Feeding Press Machine / Salt Block Press Machine



Manual to hydraulic tablet press for research, pilot-scale and full production, presses for normal, clean-room, contained and highly contained environments and presses for the production of single and bi-layer tablets.



LISEN's strong drive to innovate and improve the compaction process is reflected in the unique design and patented features present throughout our tablet press range.


Our R&D and engineering departments constantly focus on increasing the productivity and flexibility of our tablet presses, improving tablet quality and enhancing operator safety.



Technical Parameters for Salt Block Press Machine:

Production Capacity

3-5molds/min(the actual speed according to product process requirement)

Working Pressure

≤250T(1. step-less adjustment 2. can be bidirectional compress)

Working Stroke

Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )

Filling Depth

≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )

Product Mould

Customized according to the tablet features(Multi-cavity Mould)

Apply to Shape

Round, square, or special-shaped(suitable for a variety of shapes)

Motor Power

18. 5kw 22kw(Servo)

Weight&Size

Approximately:5200kg 3200mm*1200mm*2100mm(L*W*H)



Features for Salt Block Press Machine:

Can compress 1-10kg salt licking blocks
Fully automatic PLC control, stable performance
Imported hydraulic system
Offer installation abroad after-sales service
Unique bi-layer manufacturing option
High sensitivity weight control for small tablets and those requiring low compression forces
Tablet hardness control
Large front and rear door for easy access
Complete process control

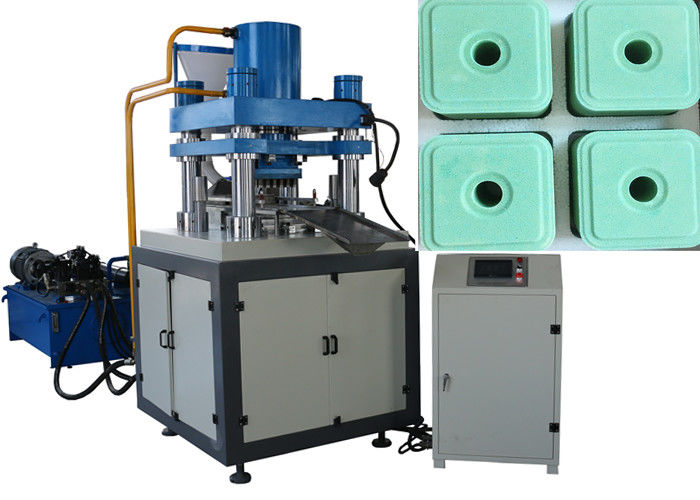

2kg Salt Block Hydraulic Tablet Press For Cattle Deer Camel Feeding Press Machine / Salt Block Press Machine 0

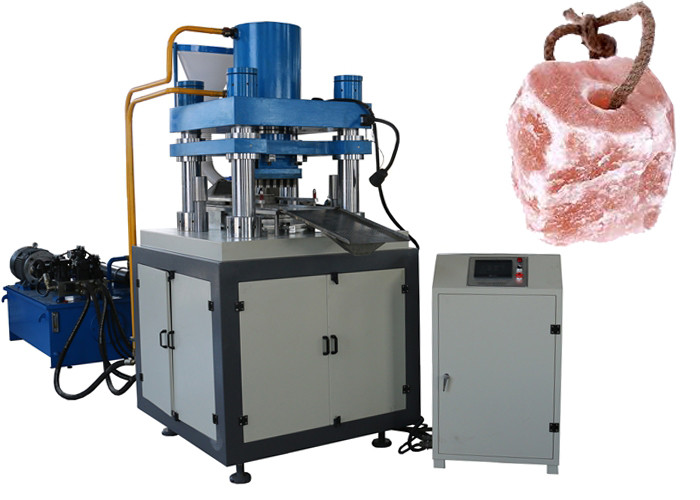

2kg Salt Block Hydraulic Tablet Press For Cattle Deer Camel Feeding Press Machine / Salt Block Press Machine 1

A Salt Block Press Machine is a mechanical device that compresses powder into tablets of uniform size and weight. A tablet press can be used to manufacture tablets of a wide variety of materials, including pharmaceuticals, nutraceuticals Nutraceutical, cleaning products, industrial pellets and cosmetics. To form a tablet, the granulated powder material must be metered into a cavity formed by two punches and a die, and then the punches must be pressed together with great force to fuse the material together.

2kg Salt Block Hydraulic Tablet Press For Cattle Deer Camel Feeding Press Machine / Salt Block Press Machine 2

A tablet is formed by the combined pressing action of two punches and a die. In the first step of a typical operation, the bottom punch is lowered in the die creating a cavity into which the granulated feedstock is fed. The exact depth of the lower punch can be precisely controlled to meter the amount of powder that fills the cavity. The excess is scraped from the top of the die, and the lower punch is drawn down and temporarily covered to prevent spillage. Then, the upper punch is brought down into contact with the powder as the cover is removed. The force of compression is delivered by high pressure compression rolls which fuse the granulated material together into a hard tablet. After compression, the lower punch is raised to eject the tablet.

Services for Salt Block Press Machine:

2kg Salt Block Hydraulic Tablet Press For Cattle Deer Camel Feeding Press Machine / Salt Block Press Machine 3

Customers' feedback for Salt Block Press Machine:

2kg Salt Block Hydraulic Tablet Press For Cattle Deer Camel Feeding Press Machine / Salt Block Press Machine 4
