Refined Camphor Tablet Making Machine / Single Punch Tablet Press Machine Pdcb Moth Tablets

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS-45T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Warranty: 1 Year Voltage: 220V/380V
Product Name: Camphor Tablet Making Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

kapoor tablet making machine

,

camphor making machine

Product Description

camphor refined camphor tables single punch tablet press machine pdcb moth tablets/ naphthalene balls tablet compression





Our tablet tooling design is critical to ensuring a robust tablet compression process. Considerations when designing pharmaceutical tablet compression tool design include tooling set, head flat, top head angle, top head radius, head back angle, and punch shank. As well as ensuring a single dose of drug, the tablet tooling is also critical in ensuring the size, shape, embossing and other physical characteristics of the tablet that are required for identification.



There are 2 types of tablet presses: single-punch and rotary tablet presses. Most high-speed tablet presses take the form of a rotating turret that holds any number of punches. As they rotate around the turret, the punches come into contact with cams which control the punch's vertical position. Punches and dies are usually custom made for each application, and can be made in a wide variety of sizes, shapes, and can be customized with manufacturer codes and scoring lines to make tablets easier to break. Depending on tablet size, shape, material, and press configuratio.



Technical Parameters:

Production Capacity 5-7molds/min(the actual speed according to product process requirement)
Working Pressure ≤45T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤150mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 7. 5kw 9kw(Servo)
Weight&Size Approximately:2000kg 2200mm*950mm*2050mm(L*W*H)


-Zero-gap closed powder feeder to minimize cross-contamination between layers and to minimize powder loss.
-Specially designed extraction nozzles and scraper fingers for optimal cleaning of the die table, again to minimize cross-contamination between layers.
-Manual or fully automatic first-layer sampling.
-Weight control system, which is exceptionally sensitive and accurate even at low compression forces. This is particularly important in case of bi-layer production, as low compression forces are applied to guarantee optimal bonding between the two tablet layers.

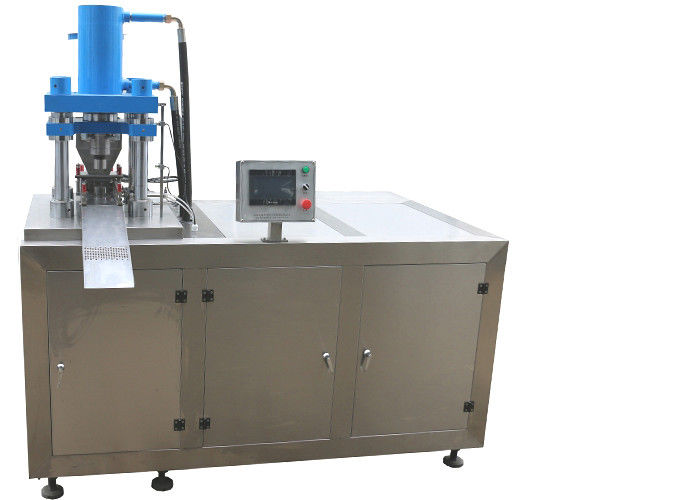

Refined Camphor Tablet Making Machine / Single Punch Tablet Press Machine Pdcb Moth Tablets 0

Brief Introduction:

- Fully CNC Control Design: Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.

- Fully Intelligent Operation Design: Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.

- Fully-automatic Material Filling Design: The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.

- Isolated Hydraulic Station Design: Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.
