Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS100T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Power(W): | Depends | Certification: | CE ISO9001 |
|---|---|---|---|
| Product Name: | Ceramic Press Machine | Application: | Tablet Press |
| Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
| Standard: | BV | Type: | Hydraulic Tablet Press |
| High Light: | medicine tablet making machine,multi punch tablet machine |
||
Product Description

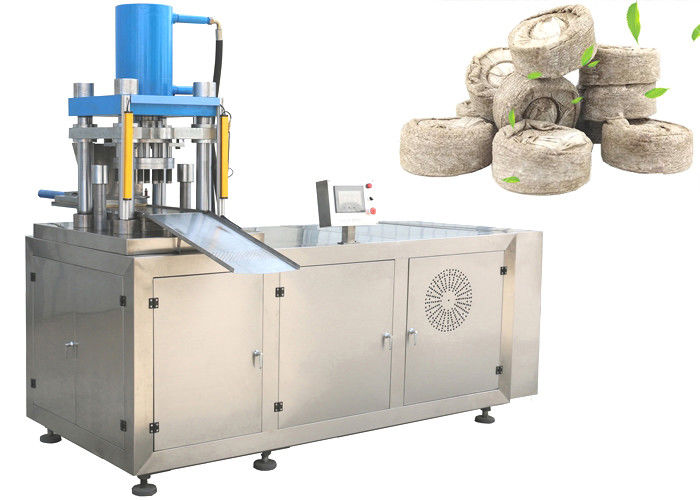

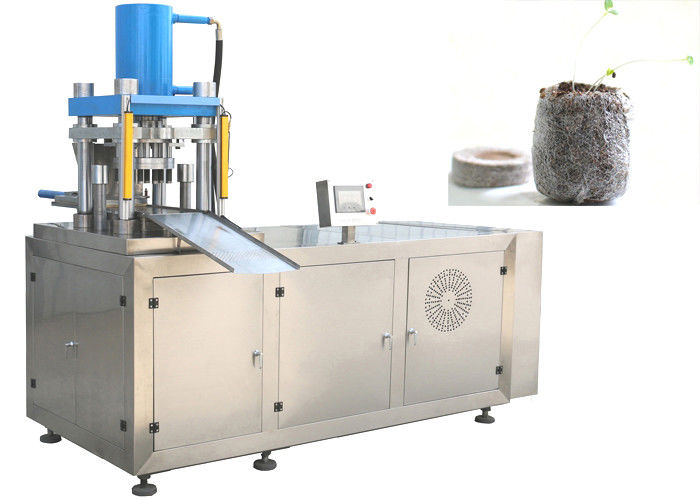

Tablet Press Machine For Bio Fertilizer, Organic Fertilizer Production Equipment, Tablet Press
A hydraulic press is a machine press using a hydraulic cylinder to generate a compressive force. It uses the hydraulic equivalent of a mechanical lever, and was also known as a Bramah press after the inventor, Joseph Bramah, of England. He invented and was issued a patent on this press in 1795. Bramah studied the existing literature on the motion of fluids and put this knowledge into the development of the press.
Technical Parameters:
| Production Capacity | 4-6molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤100T(1. step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 11kw 15kw(Servo) |
| Weight&Size | Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H) |
The characteristic of machine is high-precision, sub high-speed and automation. It is the best choice for high output and large batch production.
Tablet press machine is continuous automatic, it is the pharmaceutical, chemical, food processing, electronics and other industrial department granular materials into one of the necessary equipment, it is suitable for small batch production, laboratory, hospital departments such as pressing tablets, catalyst, sugar tablets, calcium tablets, coffee, powder metallurgy, electronic components and various agricultural fertilizer agent, etc.It can suppress all kinds of special-shaped, ring tablet, and can suppress double-sided engraved with trademarks, text and simple graphics tablets, because of the pressure, strength, particularly suited to suppress difficult molding powder tablets, such as ceramic powder, metal powder, etc
(1). Excellent performance, strong adaptability, convenient operation.
(2). Machine has big pressure, could press big tablet, for small capacity.
(3). Material filling and depth adjusted.
(4). Machine could be operated by electricity and hands.
(5). Machine could press different tablet size and tablet shape by changing mould.
Tablet Press Machine Applications:
Quality Assurance
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
