Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS2000T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Standard: | BV | Working Pressure: | ≤1000T |
|---|---|---|---|
| Product Mold: | Multi-cavity Mould | Filling Depth: | Filling Depth |
| Product Name: | Ceramic Press Machine | Application: | Tablet Press |
| Apply To Shape: | Round,square,or Special-shaped | Type: | Hydraulic Tablet Press |
| High Light: | hydraulic tile press machine,cement tile press machine |
||
Product Description

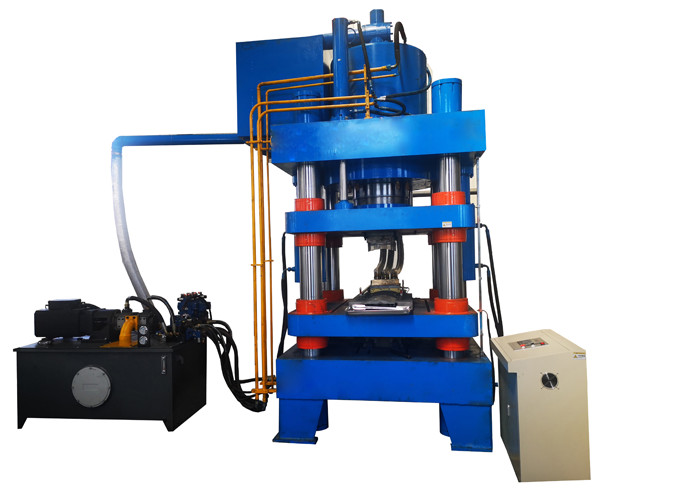

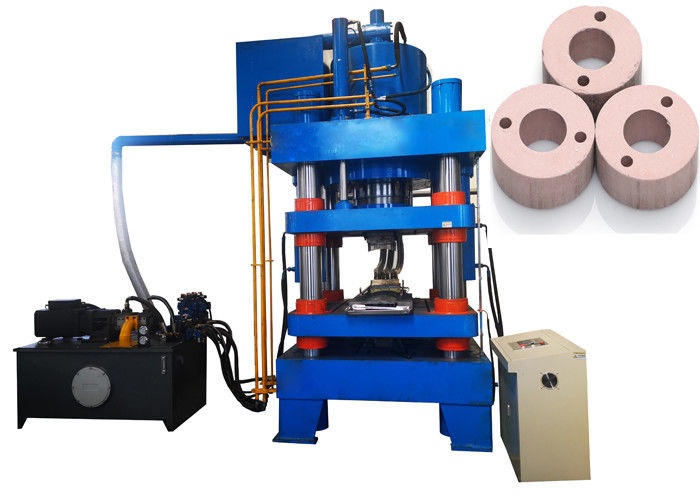

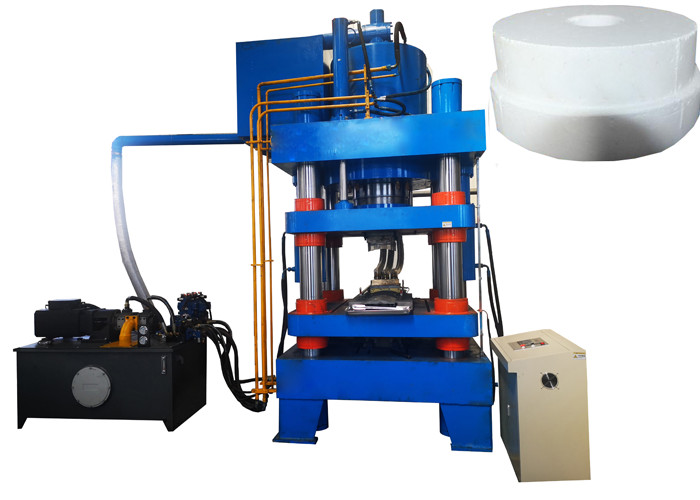

Elegant Appearance Ceramic Press Machine for Zirconia ceramic parts ceramic rods and tubes / Hydraulic Press
Brief Introduction of Ceramic Press Machine:
| Fully CNC Control Design: | Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology. |
| Fully Intelligent Operation Design: | Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily. |
| Fully-automatic Material Filling Design: | The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor. |
| Isolated Hydraulic Station Design: | Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution. |
Reasonable Structure Design of Ceramic Press Machine:
1. energy saving and environmental protection
2. small space occupation
3. superior performance
4. simple operation
5. easy maintenance and so on.
Main Features of Ceramic Press Machine:
a. Excellent performance, strong adaptability, convenient operation.
b. The machine has big pressure, could press a big tablets, for small capacity.
c. Material filling and depth adjusted.
d. Offer installation abroad after-sales service
e. Fully automatic PLC control, stable performance
f. The machine could press different tablet sizes and tablet shapes by changing the mould.
g. Offer installation abroad after-sales service
| Production Capacity | 2-4molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤1000T(1.step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Upstroke ≤ 800mm, down strokes≤300mm(1. step-less adjustment 2.Customized based on customer’s request.) |
| Filling Depth | ≤400mm(1. step-less adjustment 2. Customized based on customer’s request.) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 37kw 50kw(Servo) |
| Weight&Size | Approximately:25000kg 4000mm*1200mm*3000mm(L*W*H) |
Service Process of Ceramic Press Machine:
Application of Ceramic Press Machine:
To be agent of Our Ceramic Press Machine:
Customers of Ceramic Press Machine:
Company Information of Ceramic Press Machine:
Changzhou Jintan Lishen Machinery Co., Ltd. is a professional manufacturer and supplier of tablet press machinery and equipment in China.
We have a well-experienced team to manufacture tablet press machine and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world.
This hydraulic press machine is designed to make a tablet or block in different shapes from different powder materials.
